Fuel Hose Gates 27340

Calculate Shipping

Free Shipping Offer for orders over $150 - $0.00 (ETA: 4 days)
Free Shipping Offer is only Valid For orders over $150 and weigh under 5KGs ******************************************************************************************************** • Free shipping is only valid to delivery destinations within Australia. • The order value is not inclusive of any quoted freight charges or installation charges. • Remote areas may be charged a small surcharge Please contact us if ordering from a remote areas. This method can not be used for delivery to PO Boxes or Parcel Lockers

Description

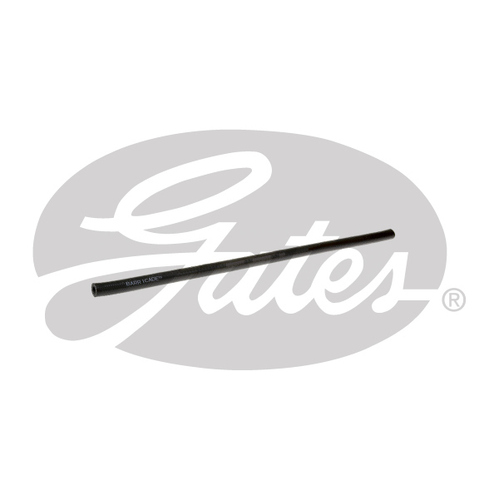

Gates Fuel Hose 27340

Material	EPDM(ethylene propylene diene Monomer (M-class) rubber)
Colour	Black
Hose length [mm]	7,62
Inner Diameter 1 [mm]	8
Inner Diameter 2 [mm]	8
Working pressure [bar]	15,5
Operating Temperature From [°C]	-40
Operating Temperature Up To [°C]	135
Observe broschure

Heat and ozone-resistant cover
Engineered to resist electrochemical degradation - the leading cause of hose failure
SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications
Temperature rating: -40° C to 135° C in coolant hose applications

The primary cause of coolant hose failure is an electrochemical attack on the rubber compound in the hose.

This phenomenon is known as electrochemical degradation or ECD. It occurs because the hose liquid coolant and engine/radiator ﬁttings form a galvanic cell or “battery”.

This creates a chemical reaction that causes micro-cracks to form in the hose tube. Coolant seeps into these cracks or striations and begins to break down the reinforcement.

This leads to hose failure and ultimately roadside breakdowns.

About Gates Automotive

Gates works with virtually every original equipment manufacturer worldwide to design products for new vehicles as they are being developed.

These strong relationships together with our commitment to continuous innovation enable us to offer a complete line of OE-quality Radiator and Heater hose replacement products for the automotive aftermarket.

Gates automotive parts are as good as the original or better.

Fitment

Make	Model	Year	Fuel Type	Chassis	Lyt

Specifications

SKU	27340
Brand	Gates
Barcode #	770075453932
Working pressure [bar]::15 5::6
Material	EPDM(ethylene propylene diene Monomer (M-class) rubber)
Operating Temperature Up To [°C]::135::8
Colour	Black
Inner Diameter 1 [mm]	8
Inner Diameter 2 [mm]	8
Operating temperature from [°C]	-40
Diameter [mm]	8
Hose Length [mm]	7 62
Operating Temperature Up To [°C]	135
Working pressure [bar]	15 5
Hose Length [mm]	7 6
Material::EPDM(ethylene propylene diene Monomer (M-class) rubber)::1
Colour::Black::2
Inner Diameter 1 [mm]::8::4
Inner Diameter 2 [mm]::8::5
Operating Temperature From [°C]::-40::7
Hose length [mm]::7 62::3
