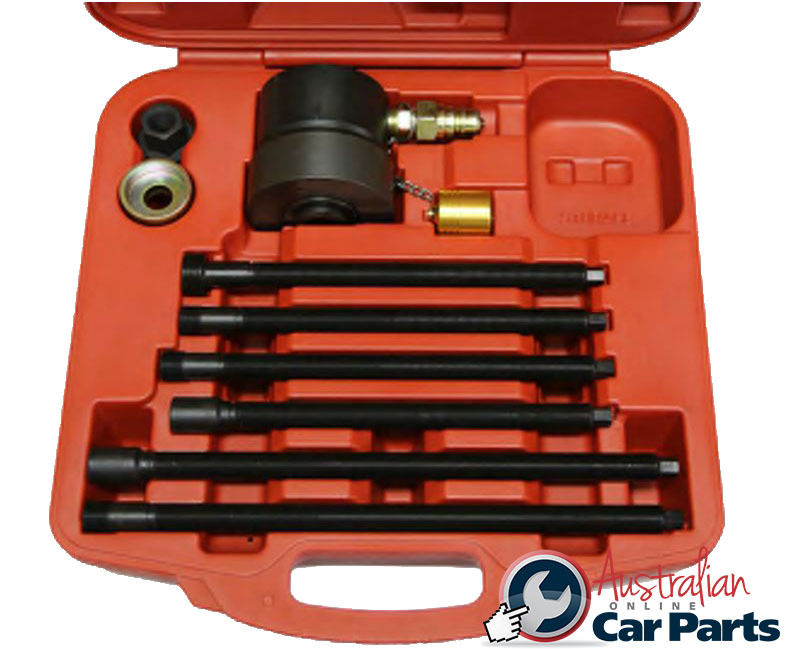

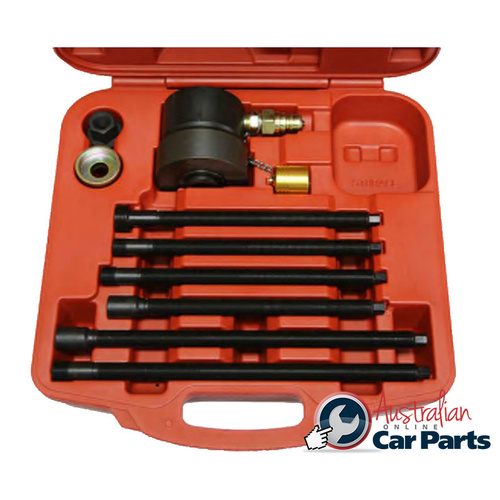

17 Ton Hydraulic Injection Nozzle Puller T&E Tools 4055

17 Ton Hydraulic Injection Nozzle Puller T&E Tools

• This set enables the professional safe extraction of very tight fitting injection nozzles in conjunction with a special pull spindle. An injection nozzle puller with an extraction bridge and a hydraulic pump with a manometer.

  The hydraulic cylinder with shoulder nut together with a special pull spindle is placed onto the extraction bridge instead of a mechanical drive. The special manometer of the hydraulic pump ensures that the applied force can checked during the extraction process.

  Contains:

• 1 x 14mm x 1.5 pitch Pulling Spindle 240mm long.
• 1 x 14mm x 1.5 pitch Pulling Spindle 315mm long.
• 1 x 17mm x 1.0 pitch Pulling Spindle 240mm long.
• 1 x 17mm x 1.0 pitch Pulling Spindle 315mm long.
• 1 x 18mm x 1.5 pitch Pulling Spindle 315mm long.
• 1 x 25mm x 1.0 pitch Pulling Spindle 240mm long.
• 1 x Distance Ring
• 1 x Tooth Cap Nut 16mm
• 1 x Bush
• Hydraulic Ram: 170KN (17 Ton), 15mm stroke, 16.5mm bore in tubular piston.
• Height retracted: 89mm.
• Extended: 104mm.
