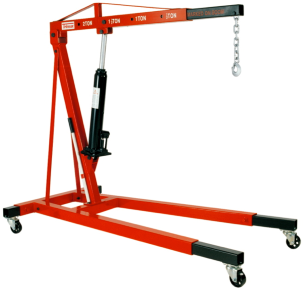

2 Ton Floor Crane T&E Tools SH020F

2 Ton Floor Crane T&E Tools SH020F

•  ​Features pump access from rear
• Telescopic boom extension gives additional reach to pull engines from vehicles
• Hydraulic operation and long pump handle provides easy lifting
• Hydraulic long ram design with safety knob to prevent damage
• Heavy-duty roller bearing casters
• Rear casters swivel 360° for manoeuverability
• Dismantles for easy storage and transportation
• All four legs extend for greater stability
• Note: PL2500 is not part of SH020F Floor Crane
•

  Weight: 285 lbs (130kg).

  Boom Position	Lifting Capacity	Min Hook Height	Max Hook Height	Boom Length
  Hole 1	2000kgs	410mm	1770mm	800mm
  Hole 2	1500kgs	290mm	1920mm	1030mm
  Hole 3	1000kgs	180mm	2070mm	1260mm
  Hole 4	500kgs	60mm	2220mm	1490mm
