SKU: KI-K1506

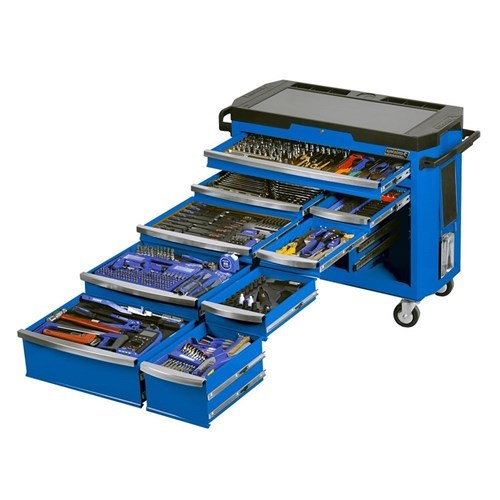

KINCROME CONTOUR® Tool Trolley 485 Piece 1/4, 3/8 & 1/2" Drive K1506

Quality Genuine Brands all with Manufacturer's Warranty

$7,057.80
RRP $10,054.00
SAVE $2,996.20 (30%)

More info.

Make 4 payments of $1,764.45 over 8 weeks and get it now!



In Stock


Calculate Shipping

Description

Kincrome 485P CONTOUR 42"TROLLEY BLUE K1506

SERIES DESCRIPTION
CONTOUR®
The Leading Edge In Tool Kits & Storage

The CONTOUR® range of Tool Kits, Chests and Trolleys is our premium level range, developed for those looking for trade quality tools and features. CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR® range features a sleek contoured design, available in a variety of gloss colours with a UV protected powder coated finish. CONTOUR® storage comes standard with a range of premium features, including; the chamfered Kincrome embossed side panels, ’Automatic Drawer Retention System (ADRS)’ locking system, heavy duty ‘Big Grip’ side carry handles and a contoured trolley handle, side folding work trays, MDF worktop and four swivel heavy duty polyurethane castors for easy manoeuvrability.

CONTOUR® offers a complete range of carts, chests, trolleys and kits to suit every need, from; 26” standard, 28” & 29” extra deep, 42” extra wide and 60” super wide. CONTOUR® is fully modular and customisable, offering the flexibility to build your own premium workshop, the way you want.


CONTOUR® ‘standard’ features
• Curved contour design with extra reinforcement
• Available in a variety of gloss colours with a UV protected powder coated finish
• Plastic moulded bumpers for extra protection
• Automatic Drawer Retention System (ADRS)
• 35mm Ball Bearing Slide Drawers with folded drawer edges
• Heavy-duty Ball Bearing Slide Drawers with folded drawer edges resulting in a 30Kg draw capacity
• Full extension drawers open further than standard drawers
• Larger ‘curved’ aluminium drawer grips
• 2mm EVA foam drawer matting / lining
• Recessed cam with 2 keys
• Standard & Deep drawer heights for greater storage options
• 26” standard, 29” extra deep, 42” extra wide & 60” super wide Tool Kits, Carts, Chests & Trolleys
• Designed in Australia by KINCROME

CONTOUR® Chests
• Chamfered Kincrome embossed side panels
• Dual Gas Strut lid stays
• Heavy Duty ‘big grip’ plastic moulded side carry handles
• Rubber Feet on base

CONTOUR® Trolleys
• Plastic embossed (recessed) moulded work surface with 12mm-18mm integrated MDF worktop
• Stainless Steel work surface (Contour 60 only)
• 45mm Ball Bearing Slide Drawers with folded drawer edges
• Dual Ergonomic Kincrome embossed trolley handles
• Dual side folding work trays with EVA foam liners
• Four swivel Heavy Duty polyurethane 5 x 2” castors (4 x swivel) for easy manoeuvrability
• High load capacity castors (Contour 60 only)

CONTOUR® Tool Kits
• Advanced EVA Foam Trays to house tools with hard top shell for easy identification & cleaning
• KINCROME ‘+PLUS’ & ‘LOK-ON’ Socket range (select kits)
• KINCROME ‘Mirror Polish’ range of Sockets & Spanners (select kits)
• US style spanners
• Traditional style and comprehensive range
• ‘X-Force’ Pliers
• Choose from a range of low to high end spec’d tool kits available in a variety of colours
CONTENTS
DRAWER 1 - EVA Tray Sockets & Accessories CONTOUR® 89 Piece 1/4", 3/8" & 1/2" Drive

METRIC SIZES:
• 9 Sockets 1/4" Square Drive:
4, 5, 6, 7, 8, 9, 10, 11, 12mm

• 10 Sockets 3/8" Square Drive:
9, 10, 11, 12, 13, 14, 16, 17, 18, 19mm

• 19 Sockets 1/2" Square Drive:
8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 30, 32mm

• IMPERIAL SIZES:
• 9 Sockets 1/4" Square Drive:
3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"

• 7 Sockets 3/8" Square Drive:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"

• 15 Sockets 1/2" Square Drive:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1", 1.1/16, 1.1/8, 1.3/16, 1.1/4"

• 13 Socket Accessories:

• 1/4" Square Drive
Ratchet Handle Reversible Male
Spinner Handle 150mm (6")
1/4 Male x 3/8" Female Adaptor
Extension 150 mm (6")

• 3/8" Square Drive
Ratchet Handle Reversible Male
Extension 75mm (3")
Extension 150mm (6")
3/8 Female x 1/2" Male Adaptor

• 1/2" Square Drive
Ratchet Handle Reversible Male
Universal Joint
Extension 125mm (5")
Extension 250 mm (10")
Flex Handle 375mm (15")
Sliding T-Handle 250mm (10")
1/2" Female x 3/8" Male Adaptor

• 2 Spark Plug Sockets
16mm (5/8) x 3/8" Square Drive
21mm (13/16) x 1/2" Square Drive

EVA Size - 540mm x 395mm x 30mm


EVA Tray Hex & TORX® Keys CONTOUR® 36 Piece

• Ball Point Hex Key Set Long Series 9 Piece AF:
1/16" x 14 x 90mm, 3/16" x 28 x 160mm, 5/64" x 16 x 100mm, 1/4" x 32 x 180mm, 3/32" x 18 x 112mm, 5/16" x 36 x 200mm, 1/8" x 20 x 126mm, 3/8" x 40 x 224mm, 5/32" x 25 x 140mm

• Ball Point Hex Key Set Long Series 9 Piece Metric:
1.5 x 14 x 90mm, 5.0 x 28 x 160mm, 2.0 x 16 x 100mm, 6.0 x 32 x 180mm, 2.5 x 18 x 112mm, 8.0 x 36 x 200mm, 3.0 x 20 x 126mm, 10.0 x 40 x 224mm, 4.0 x 25 x 140mm

• Tamperproof TORX® Set Long Series 9 Piece:
T10H x 14 x 90mm, T30H x 28 x 160mm, T15H x 16 x 100mm, T40H x 32x 180mm, T20H x 18 x 112mm, T45H x 36 x 200mm, T25H x 20 x 126mm, T50H x 40 x 224mm, T27H x 25 x 140mm

• TORX® Set Long Series 9 Piece:
T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm, T45 x 44 x 210mm, T50 x 50 x 235mm

EVA Size - 130mm x 395mm x 30mm


EVA Tray Pliers & Cutters CONTOUR® 4 Piece
• Combination Pliers 200mm (8")
• Diagonal Cutting Pliers 200mm (8")
• Long Nose Pliers 200mm (8")
• Multi-Grip Pliers 250mm (10")
EVA Size - 130mm x 395mm x 30mm


DRAWER 2 - EVA Tray Combination Spanners CONTOUR® 30 Piece

• 17 Metric Combination Spanners
6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

• 13 Imperial Combination Spanners
1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1"

EVA Size - 540mm x 395mm x 30mm


DRAWER 3 - EVA Tray Screwdrivers & Fastening CONTOUR® 72 Piece

• 13 Piece TorqueMaster® Screwdriver Set
8 Screwdrivers - Blade:
3mm x 75mm, 4mm x 100mm, 5mm x 100mm, 5mm x 150mm, 6mm x 100mm, 8mm x 150mm, 6mm x 38mm, 9.5mm x 250mm

5 Screwdrivers - Phillips:
No.0 x 75mm, No.1 x 75mm, No.2 x 100mm, No.2 x 38mm, No.3 x 150mm

• 14 Piece Impact Screwdriver Set 1/2" Drive
1/2" Drive Impact Screwdriver
4 Phillips Impact Bits: No. 1, 2, 3, 4
5 Blade Impact Bits: 5, 6, 8, 10, 12mm
4 Hex Impact Bits: 4, 5, 6, 8mm

• Magnetic Bit Driver
• Security Bit & Holder Set 33 Piece 1/4" Hex Drive

• 9 Piece Precision Screwdriver
1 Interchangeable Precision Screwdriver Handle
8 x 110mm Double End Precision Bits:
Ph000 x Ph0, Ph00 x Ph1
Blade 1.0 x Blade 1.4mm
Blade 1.2 x Blade 2.4mm
Blade 2.0 x Blade 3.0mm
T5 x T8, T6 x T9, T7 x T10

• Magnetiser & Demagnetiser
• Magnetic Telescopic Pick-up Tool Length: 470mm (18.1/2")

EVA Size - 540mm x 395mm x 30mm


DRAWER 4

• Universal Bit Set 128 Piece
6 x Blade Bits - 1/8", 5/32", 3/16", 7/32", 1/4", 9/32"
9 x Metric Blade Bits - 3, 4, 4.5, 5, 5.5, 6, 6.5, 7, 8mm
5 x Phillips Bits - No. 0, 1, 2, 3, 4
4 x Pozi Bits - No. 0, 1, 2, 3,
12 x TORX® Bits - T6, T7, T8, T10, T15, T20, T25, T27, T30, T40, T45, T50
11 x Tamperproof TORX® Bits - T6H, T7H, T8H, T9H, T10H, T15H, T20H, T25H, T27H, T30H, T40H
8 x Imperial Hex Bits - 5/64", 3/32", 7/64", 1/8", 5/32", 3/16", 7/32", 1/4"
10 x Metric Hex Bits - 1.5, 2, 2.5, 3, 4, 5, 5.5, 6, 8, 10mm
12 x Imperial Tamperproof Hex Bits - 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 3/8"
6 x Metric Tamperproof Hex Bits - 2, 2.5, 3, 4, 5, 6mm
5 x Imperial Ball Point Hex Bits - 1/8", 5/32", 3/16", 7/32", 1/4"
6 x Metric Ball Point Hex Bits - 2.5, 3, 4, 5, 5.5, 6mm
3 x Spline Bits - M5, M6, M8
3 x Clutch Bits - 5/32", 3/16", 1/4"
4 x Spanner Bits - 4, 6, 8, 10
4 x Robertson Bits - S0, S1, S2, S3
4 x Tri Wing Bits - No.1, No. 2, No. 3, No. 4
3 x Offset Phillips (Torq) bits - No. 6, No. 8, No. 10
3 x Imperial Nut Driver - 1/4", 5/16", 3/8"
3 x Metric Nut Drivers - 6, 8, 10mm
2 x Nut Driver Adaptors - 25mm, 50mm
1 x Straight Magnetic Driver Handle
1 x T-Handle Magnetic Driver Handle
1 x Wing Nut (Hook Driver)
1 x Quick Release Coupler
1 x Bit Adaptor

• 12 Piece Punch & Chisel Set
3 Cold Chisel: 16mm, 19mm, 25mm
4 Pin Punches: 2.5mm, 4.0mm, 5.0mm 6.5mm
1 Centre Punch: 5mm
1 Drift Punch: 5mm

• Tamperproof TORX® Set on Rail 11 Piece 1/4" & 3/8" Square Drive On Clip Rail
1/4" Square Drive: T-10, T-15, T-20, T-25, T-27, T-30
3/8" Square Drive: T-40, T-45, T-50, T-55, T-60

• TORX® Socket Set on Rail 11 Piece 1/4" & 3/8" Square Drive On Clip Rail
1/4" Square Drive: T-10, T-15, T-20, T-25, T-27, T-30
3/8" Square Drive: T-40, T-45, T-50, T-55, T-60

• Automatic Wire Stripper with Crimper

• Screw Extractor Set 5 Piece
(3 - 6mm, 1/8" - 1/4")
(6 - 8mm, 1/4" - 5/16")
(8 - 11mm, 5/16" - 7/16")
(11 - 14mm, 7/16" - 9/16")
(14 - 18mm, 9/16"- 3/4")

• Tape Measure Metric 8 Metre


DRAWER 5

• Digital Multimeter 3 1/2 Digit LCD Screen
• Torque Wrench Deflecting Beam 1/2" Drive
• Heavy Duty Hacksaw 300mm (12")
• Adjustable Pipe Wrench 300mm (12")
• Ball Pein Hammer Hickory Shaft 16oz (454gm)
• Bolt Cutter 350mm (14")

• Pry Bar Set 2 Piece
Extended Bent Pry Bar - 450mm (18")
Bent Pry Bar - 200mm (8")


DRAWER 6

• Deep Impact Socket Set 8 Piece Imperial 1/2" Square Drive
3/8, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"

• Impact Socket Set 10 Piece Imperial 1/2" Square Drive
7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1"

• Flex ''Go-Through'' Socket Set 13 Piece Metric, Imperial, TORX® (M)
9 Multi Drive Sockets: 10, 11, 12, 13, 14, 15, 16, 17, 19mm
3 Socket Accessories:
1 Flex Locking Reverse Go Through Ratchet Handle
1 Go Through Extension 73mm (3")
2 Quick Release Adaptors 3/8"(M), 1/2"(M)


DRAWER 7

• Hand Riveter 250mm (10")
• Tin Snip Pliers Straight Cut 260mm (10")
• Folding Lock Back Utility Knife 150mm
• 10 Piece Utility Knife Blades
• Digital Tyre Gauge
• Adjustable Wrench Chrome 200mm (8")
• Adjustable Wrench Chrome 300mm (12")
• Locking Pliers Curved Jaw 250mm (10")
• Digital Vernier 150mm (6") Fraction


DRAWER 8 - EVA Tray 1/2" Air Impact Tools & Sockets 20 Piece

• Air Impact Gun Composite 1/2" Square Drive
• Air Ratchet Wrench 1/2" Square Drive

• Deep Impact Socket Set 8 Piece Metric 1/2" Square Drive
12, 13, 14, 15, 17, 19, 21, 22mm

• Impact Socket Set 10 Piece Metric 1/2" Square Drive
10, 11, 12, 13, 14, 17, 19, 21, 22, 24mm

• 2 Oil Bottles


DRAWER 9

• Single Way Gear Spanner Set 10 Piece
8, 10, 11, 12, 13, 14, 16, 17, 18, 19mm

• Wire Brush Set Small 3 Piece
Stainless Steel: Burnishing, Stripping, Paint removal, Rust removal, Descaling
Brass: Non-Sparking, Stripping, Corrosion removal, Descaling, Wood
Nylon: Grout removal, Paint stripping, Corrosion removal, Descaling, Less aggressive than steel

• Wire Brush Set Large 3 Piece
Stainless Steel: Burnishing, Stripping, Paint removal, Rust removal, Descaling
Brass: Non-Sparking, Stripping, Corrosion removal, Descaling, Wood
Steel: Paint stripping, Corrosion Removal, Descaling, General Cleaning


Tool Kit Measurements:
• 42" CONTOUR® Tool Trolley - 9 Drawer 1059mm x 475mm x 955mm

Warranty

KINCROME AUSTRALIA WARRANTY
Subject to the exclusions set out in these terms, the below products sold and marketed by Kincrome (Kincrome Products) are guaranteed against faulty workmanship and materials on terms set out below.

KINCROME provides a range of express warranty periods for the Kincrome Products it supplies, including but not limited to the following:

For KINCROME Professional Quality Tools, you can make a claim under Kincrome's express warranty for the replacement or repair of products which have faulty workmanship or materials for the ‘lifetime' of the product. 'Lifetime' of the product may vary from product to product.
For KINCROME Equipment and SUPATOOL AIR™ products you can make a claim under Kincrome's express warranty for the replacement or repair of products which have faulty workmanship or materials for 12 MONTHS from the date of purchase.
For KINCROME AIR™ products you can make a claim under Kincrome’s express warranty for the replacement or repair of products which have faulty workmanship or materials for 2 YEARS from the date of purchase. (Kincrome Air Compressors are covered under the 12 Month Warranty)
Please refer to the specific warranty document that accompanies the Kincrome Product you have purchased or contact Kincrome for further information.

The benefits conferred by these express warranties are in addition to any other rights and remedies you may have under the Australian Consumer Law and/or other applicable laws.


WARRANTY EXCLUSIONS:
Each Kincrome Product is designed and manufactured for a specific purpose. Kincrome express warranties do not cover products that have been used for purposes other than for its intended use, or that is misused, abused or subjected to normal wear and tear, or products which have not been correctly maintained.

Kincrome express warranties also do not apply to the following products:

Sockets and accessories used on impact guns (not including impact sockets and accessories)
Screwdrivers not used for their intended purpose. For example as chisels or tyre levers
Ratchets that have been affected by normal wear and tear or that have been dented, grooved and broken (Repair Kits available separately)
Circlip Plier Tips
Extension Bars and Flex Handles that have had pipe applied for extra leverage or have been struck with a hammer
Storage (except where specified)
Taps and Dies
Hex / TORX®* / Tamperproof TORX®* Keys
Power Driving Bits and Impact Driver Bits
Hammers and Striking implements including Cold Chisels & Punches
Screw and Bolt Extractors
Drill Bits
Hex / TORX®* / Tamperproof TORX®* Bits
Consumable products (including but not exclusive to: knife blades, hacksaw blades, drill bits, augers, grinding wheels, tyres, vacuum bags, nozzles, globes, LED's, batteries, fittings, springs, blades, chucks, arbors, chisels, pads / discs, stones, needles, retaining rings, jaws or any other such attachments)
Serviceable parts (including but not exclusive to: bearings, seals, filters, spark plugs, globes, belts, batteries, fluids, fittings, springs)
Castor wheels / Creeper wheels
Bolt Cutter Jaws
Electrical, Petrol, Hydraulic and Pneumatic products
Kincome express warranties also do not cover damage to or loss of items stored in any Kincrome storage boxes (such as tool boxes or vehicle storage boxes).
Defects or other faults arising from normal wear and tear, including on parts or components of the goods.
(* TORX® is a registered Trade Mark of Acument Intellectual Properties, LLC)


WARRANTY CLAIMS

HOW TO MAKE A WARRANTY CLAIM:
To make a valid claim under this express warranty, you must:

a. Return the product firstly to the place of purchase or any authorised Kincrome service agent (or lastly to one of Kincrome's other addresses), with a confirmed register receipt or invoice clearly showing the date of purchase, or contact Australian Online Car Parts on (02) 4232 2181 to troubleshoot or further information; and

b. provide Kincrome any further information when requested.

You are responsible for all costs incurred by you to return the Kincrome Product to Kincrome and all other costs you incur in making a claim under this express warranty.

Before making a claim please read our Warranty information and how to care and maintain your tools.


FREIGHT:
All products must be returned to the place of purchase, any authorised Kincrome service agent or one of Kincrome's other addresses, with a confirmed register receipt or invoice clearly showing the date of purchase prior to freight. Kincrome may, at its absolute and unfettered discretion, accept any Goods submitted for return by the Purchaser and subject to any conditions Kincrome wishes to impose on such a return. No returns of the Goods will be accepted by Kincrome unless those Goods are returned unused and in a re-saleable condition.

If Kincrome agrees to accept the returned Goods from the Purchaser, the Purchaser accepts that it shall be responsible for payment of all transportation and freight costs in having the Goods returned to Kincrome.


WARRANTY CLAIMS:
If you make a claim under this express warranty and none of the exclusions set out above apply, Kincrome Australia Pty Ltd will at its election, repair or replace the Kincrome Product under warranty and return the repaired or replacement product to the purchaser at Kincrome's costs.

All repairs conducted on KINCROME products under this express warranty must be carried out by an authorised nationwide Kincrome service agent. Details of these authorised service agents can be found in the specific product manuals or from Kincrome on request.


CONSUMER GUARANTEES
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

If you have any queries, please contact Australian Online Car Parts on (02) 4232 2181 for further information.

Fitment

MakeModelYearFuel TypeChassisLyt

Specifications

SKUKI-K1506
BrandKINCROME
Barcode #9312753999939

Reviews

Be The First To Review This Product!

Help other Australian Online Car Parts users shop smarter by writing reviews for products you have purchased.

Write a product review


More From This Category


$4,444.00 $3,130.80

Make 4 interest-free payments of $782.70 fortnightly and receive your order now.

SKU: KI-K1502

CONTOUR® TOOL CHEST 328 PIECE 1/4"| 3/8" & 1/2" drive K1502

$3,300.00 $2,359.00

Make 4 interest-free payments of $589.75 fortnightly and receive your order now.

SKU: KI-K1508

Kincrome Contour ® Tool Cart Kit 208 Piece 1/4, 3/8 & 1/2" Drive BLUE K1508

$5,819.00 $4,093.30

Make 4 interest-free payments of $1,023.33 fortnightly and receive your order now.

SKU: KI-K1226

KINCROME EVOLUTION Tool Workshop 245 Piece 14 Drawer 1/4, 3/8 & 1/2" Drive K1226

$2,893.00 $2,045.10

Make 4 interest-free payments of $511.27 fortnightly and receive your order now.

SKU: KI-K1219

KINCROME EVOLUTION Tool Chest Kit 172 Piece 7 Drawer Deep 1/4, 3/8 & 1/2" Drive K1219

$4,444.00 $3,130.80

Make 4 interest-free payments of $782.70 fortnightly and receive your order now.

SKU: KI-K1502G

CONTOUR® TOOL CHEST 328 PIECE 1/4| 3/8 & 1/2" drive K1502G

$913.00 $659.10

Make 4 interest-free payments of $164.78 fortnightly and receive your order now.

SKU: KI-EVA425T

KINCROME EVA Tray Impact Socket & Accessory Deep Evolution 54 Piece EVA425T

$10,054.00 $7,057.80

Make 4 interest-free payments of $1,764.45 fortnightly and receive your order now.

SKU: KI-K1506G

KINCROME CONTOUR® Tool Trolley 485 Piece 1/4, 3/8 & 1/2" Drive K1506G

$4,807.00 $3,384.90

Make 4 interest-free payments of $846.23 fortnightly and receive your order now.

SKU: KI-K1227

KINCROME EVOLUTION Tool Workshop 281 Piece K1227
