Combination Blind Hole Bearing Puller T&E Tools.CR0F2

Combination Blind Hole Bearing Puller TE Tools CR0F2

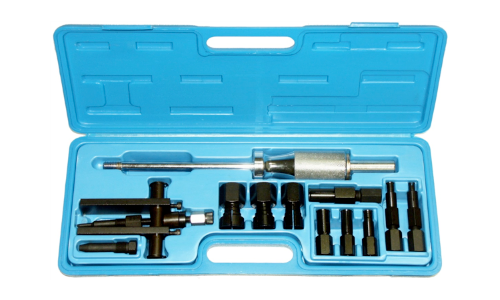

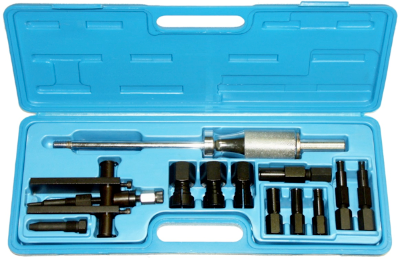

• TE-CR0F2 is an 8mm–32mm Combination Blind Hole Bearing Puller designed for specialty automotive and motorcycle workshop applications. It functions as a complete extraction kit to cleanly pull internally-housed bearings where a standard external puller cannot reach.

  Key Specifications & Kit Components

Tool Type: Combination Blind Hole Bearing Puller

Capacity Range: Fits bearings from 8mm up to 32mm inside diameters

Bridge Dimensions: Has a jaw spread of 25mm to 78mm and a maximum reach of 90mm

Slide Hammer: Includes a 3lb (1.36kg) slide hammer with a 1/2" x 13 UNC thread, measuring 385mm in length

Included Collets & Sizes [1]

The kit features an array of quick-change collets equipped with actuator pins, all measured at a standard length of 98mm:

CR108: 8–10mm Collet

CR107: 10–12mm Collet

CR106: 12–14mm Collet

CR105: 15–17mm Collet

CR104: 17–19mm Collet

CR103: 20–23mm Collet

CR102: 25–28mm Collet

CR101: 30–32mm Collet

CR112: 32–34mm Collet
