Brake Fluid Safety Meter Dot3, Dot4 & Dot5.1 T&E Tools TE-6514

Calculate Shipping

Free Shipping Offer for orders over $150 - $0.00 (ETA: 4 days)
Free Shipping Offer is only Valid For orders over $150 and weigh under 5KGs ******************************************************************************************************** • Free shipping is only valid to delivery destinations within Australia. • The order value is not inclusive of any quoted freight charges or installation charges. • Remote areas may be charged a small surcharge Please contact us if ordering from a remote areas. This method can not be used for delivery to PO Boxes or Parcel Lockers

Description

Brake Fluid Safety Meter for Dot3, Dot4 & Dot5.1 T&E Tools 6514

Brake Fluid Safety Meter is a state-of-the-art digital tester designed for precise measurement of brake fluid boil points for DOT3, DOT4, and DOT5.1 fluids.
It ensures safety and reliability by providing accurate readings, essential for maintaining optimal brake performance.

Key Features:
- Compatibility: Suitable for testing DOT3, DOT4, and DOT5.1 brake fluids.
- Power Source: Operates on a 12V automotive battery, making it convenient for use in various automotive environments.
- Testing Current: Utilises a testing current range of 5 to 7 amps, ensuring detailed and accurate measurements.
- Temperature Range: Capable of measuring brake fluid temperatures up to 320°C, providing a comprehensive safety check.
- Versatile Testing: Also features the capability to measure temperatures of other fluids when connected with a K-type thermocouple.
- Measurement Range for K-type Thermocouple: -60°C to 500°C, allowing for a wide variety of thermal applications.
- Operational Environment: Designed to function efficiently within a temperature range of 0 to 50°C, making it suitable for diverse working conditions.

Additional Information:
The No.6514 Brake Fluid Safety Meter is an essential tool for automotive professionals and enthusiasts. Its robust design, coupled with advanced measuring capabilities, ensures that brake systems are thoroughly checked and maintained. The inclusion of a K-type thermocouple monitoring broadens its application, making it a versatile instrument in the automotive diagnostic toolkit.

Specifications:
- Model: No.6514
- Usage: Testing brake fluid types - DOT3, DOT4, DOT5.1
- Power: 12V automotive battery
- Testing Current: 5 - 7A
- Brake Fluid Temperature Range: ≤320°C
- K-type Thermocouple Temperature Range: -60°C to 500°C
- Operating Temperature Range: 0 to 50°C

Ideal For:
Automotive technicians, mechanics, and car enthusiasts who require precise and reliable brake fluid testing to ensure optimal performance and safety of braking systems.

Usage Instructions:

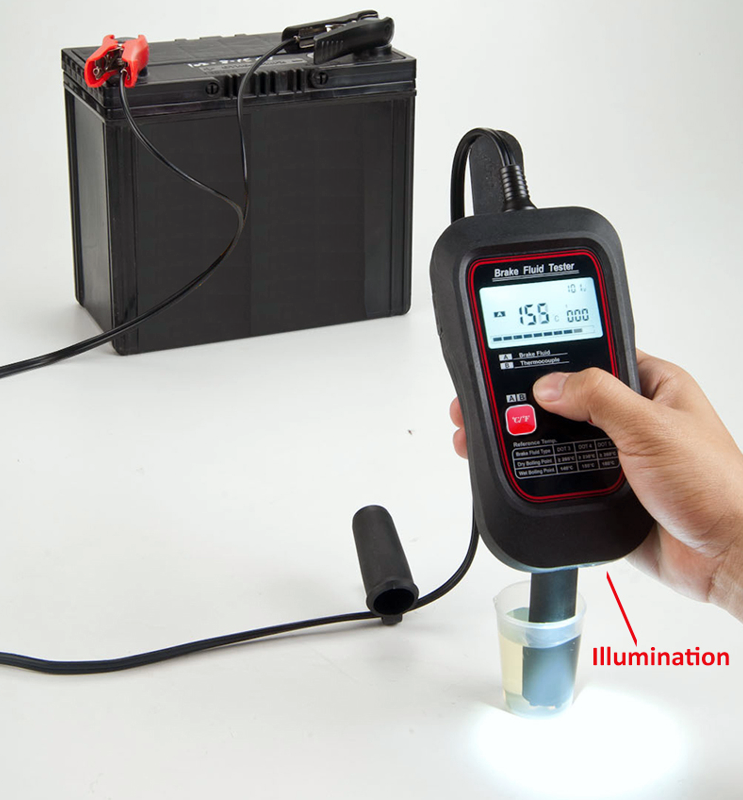

Connect the tester to the car battery, immerse the probe into the brake fluid, and read the boil point from the digital display. For measuring other fluids, attach the K-type thermocouple to the tester and proceed with temperature measurements within the specified range.

With the No.6514 Brake Fluid Safety Meter, you can ensure your vehicle's braking system is in top condition, reducing the risk of brake failure and enhancing overall safety on the road.

Specifications:

ABOUT BOILING POINT
BOILING POINT TYPE	DOT 3	DOT 4	DOT 5.1
DRY BOILING POINT	≥205°C	≥230°C	≥260°C
WET BOILING POINT	≥140°C	≥155°C	≥180°C
INSTRUCTIONS
1. Recommend a battery voltage between 12-13V. 2. Ensure both "Brake fluid cycle paths" are immersed in the brake fluid. 3. Hold the Brake Fluid Testing Probe perpendicular to the brake fluid during the test. 4. If "Wait Cool" appears on the LCD, wait for the heating wire to cool down before conducting the next test. 5. Use the "Brake fluid sucker" to draw some brake fluid into the measuring cup for testing. 6. Make sure power clips are connected securely with the correct polarity before any measurement. 7. After testing, wait at least 3 seconds for the heating wire to cool down before removing the testing probe from the brake fluid. 8. Avoid shaking or smashing the testing probe, especially after the test.
CAUTION: ● Ensure the brake fluid level is higher than the minimum brake fluid volume position before testing. ● If the “Err” & “Wait Cool” icons appear on the LCD, it indicates the brake fluid level may be lower than the minimum brake fluid volume position and the over-temperature protection has activated. Please check that the brake fluid level is above the minimum brake fluid volume position and wait for the tester to cool down. ● If the battery voltage is lower than 11.4V, charge the battery before testing.
