Radiator Hose Gates 28409

Calculate Shipping

Description

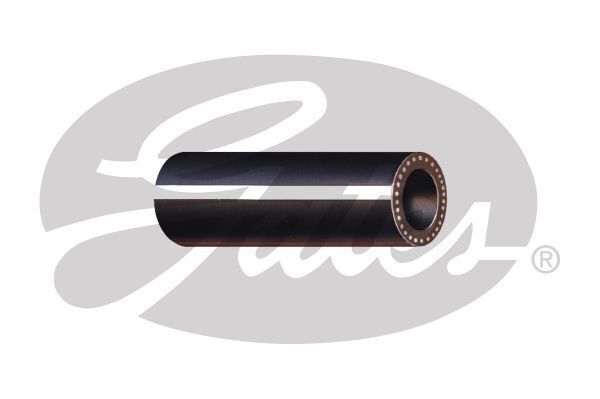

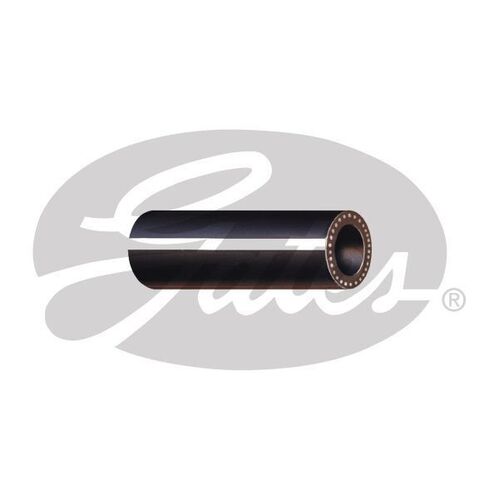

Gates Radiator Hose 28409

Heat and ozone resistant cover
Engineered to resist electrochemical degradation - the leading cause of hose failure
SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications
Temperature rating: -40° C to 135° C in coolant hose applications

The primary cause of coolant hose failure is an electrochemical attack on the rubber compound in the hose.

This phenomenon is known as electrochemical degradation or ECD. It occurs because the hose liquid coolant and engine/radiator ?ttings form a galvanic cell or “battery”.

This creates a chemical reaction which causes micro-cracks to form in the hose tube. Coolant seeps into these cracks or stryations and begins to break down the reinforcement.

This leads to hose failure and ultimately roadside breakdowns.

About Gates Automotive

Gates work with virtually every original equipment manufacturer worldwide to design products for new vehicles as they are being developed.

These strong relationships together with our commitment to continuous innovation enable us to offer a complete line of OE quality Belts & Tensioners products for the automotive aftermarket.

Gates automotive parts are as good as the original or better.

Fitment

Make	Model	Year	Fuel Type	Chassis	Lyt

Features

Australian Online Car Parts does not sell genuine Toyota Parts. Australian Online Car Parts sell quality after market Brand parts suitable for Toyota models.

Specifications

SKU	28409
Brand	Gates
Barcode #	9314693092121
Inner Diameter 1 [mm]	9 5
Inner Diameter 2 [mm]	9 5
Operating temperature from [°C]	-40
Operating temperature to [C°]	125
Pressure [bar]	4 1
Length [in]	600
Hose Length [mm]	15240
Operating Temperature From [°C]::-40::4
Operating temperature to [C°]::125::5
Pressure [bar]::4 1::6
Length [in]::600::7
Hose Length [mm]::15240::1
Inner Diameter 1 [mm]::9 5::2
Inner Diameter 2 [mm]::9 5::3
