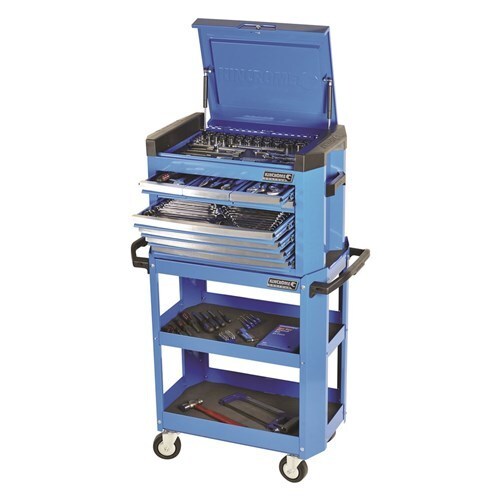

Kincrome Contour Tool Chest with 208 Piece 1/2, 3/8, 1/4 Drive

Kincrome Tool Box K7748S 208 Piece 1/2, 1/4 , 3/8 Drive Tool Set
SERIES DESCRIPTION (Trolley Only Display K7743)

CONTOUR®
The Leading Edge In Tool Kits & Storage

The CONTOUR® range of Tool Kits, Chests and Trolleys is our premium level range, developed for those looking for trade quality tools and features. CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR® range features a sleek contoured design, available in a variety of gloss colours with a UV protected powder coated finish. CONTOUR® storage comes standard with a range of premium features, including; the chamfered Kincrome embossed side panels, ’Automatic Drawer Retention System (ADRS)’ locking system, heavy duty ‘Big Grip’ side carry handles and a contoured trolley handle, side folding work trays, MDF worktop and four swivel heavy duty polyurethane castors for easy manoeuvrability.

CONTOUR® offers a complete range of carts, chests, trolleys and kits to suit every need, from; 26” standard, 28” & 29” extra deep, 42” extra wide and 60” super wide. CONTOUR® is fully modular and customisable, offering the flexibility to build your own premium workshop, the way you want.

CONTOUR® ‘standard’ features
• Curved contour design with extra reinforcement
• Available in a variety of gloss colours with a UV protected powder coated finish
• Plastic moulded bumpers for extra protection

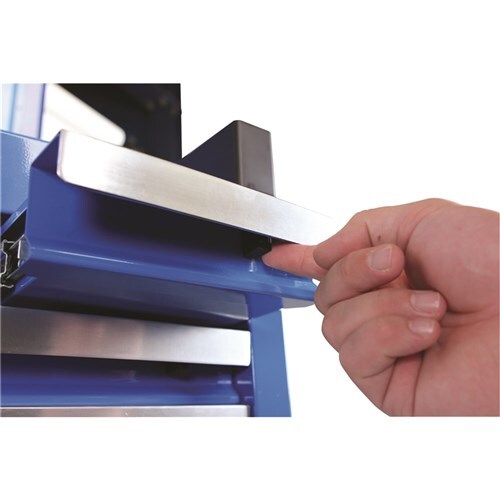

• Automatic Drawer Retention System (ADRS)
• 35mm Ball Bearing Slide Drawers with folded drawer edges
• Heavy-duty Ball Bearing Slide Drawers with folded drawer edges resulting in a 30Kg draw capacity
• Full extension drawers open further than standard drawers
• Larger ‘curved’ aluminium drawer grips
• 2mm EVA foam drawer matting / lining

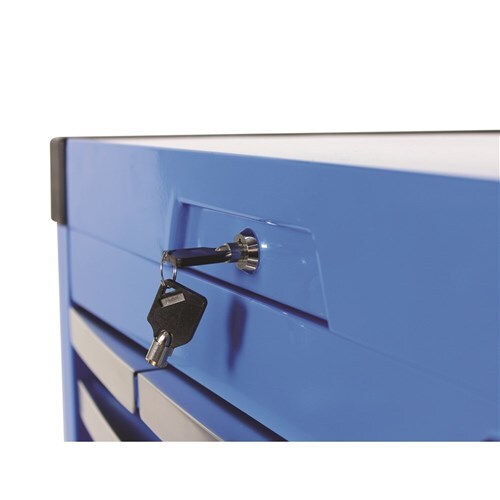

• Recessed cam with 2 keys
• Standard & Deep drawer heights for greater storage options
• 26” standard, 29” extra deep, 42” extra wide & 60” super wide Tool Kits, Carts, Chests & Trolleys
• Designed in Australia by KINCROME

CONTOUR® Chests

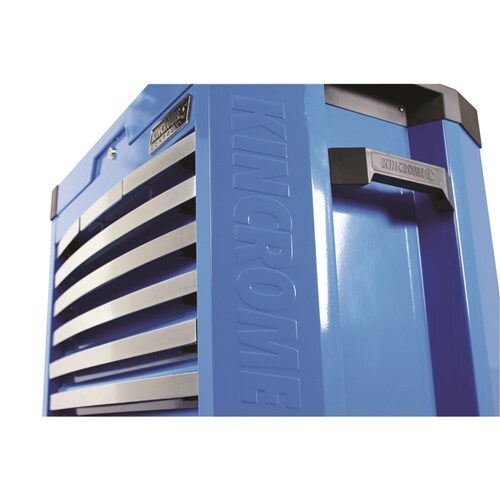

• Chamfered Kincrome embossed side panels
• Dual Gas Strut lid stays
• Heavy Duty ‘big grip’ plastic moulded side carry handles
• Rubber Feet on base

CONTOUR® Tool Kits
• Advanced EVA Foam Trays to house tools with hard top shell for easy identification & cleaning
• KINCROME ‘+PLUS’ & ‘LOK-ON’ Socket range (select kits)
• KINCROME ‘Mirror Polish’ range of Sockets & Spanners (select kits)
• US style spanners
• Traditional style and comprehensive range
• ‘X-Force’ Pliers
• Choose from a range of low to high end spec’d tool kits available in a variety of colours
CONTENTS
EVA70T - 89 Piece Socket & Accessories

METRIC SIZES:

• 9 Sockets 1/4" Square Drive:
4, 5, 6, 7, 8, 9, 10, 11, 12mm

• 10 Sockets 3/8" Square Drive:
9, 10, 11, 12, 13, 14, 16, 17, 18, 19mm

• 22 Sockets 1/2" Square Drive:
8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 30, 32mm

IMPERIAL SIZES:

• 9 Sockets 1/4" Square Drive:
3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"

• 7 Sockets 3/8" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"

• 15 Sockets 1/2" Square Drive:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1", 1.1/16, 1.1/8, 1.3/16, 1.1/4"

13 SOCKET ACCESSORIES

1/4" Square Drive:
• Ratchet Handle Reversible Male
• Spinner Handle 150mm (6")
• 1/4 Male x 3/8" Female Adaptor
• Extension 150 mm (6")

3/8" Square Drive
• Ratchet Handle Reversible Male
• Extension 75mm (3")
• Extension 150mm (6")
• 3/8 Female x 1/2" Male Adaptor

1/2" Square Drive
• Ratchet Handle Reversible Male
• Universal Joint
• Extension 125mm (5")
• Extension 250 mm (10")
• Flex Handle 250mm (10")
• Sliding T-Handle 250mm (10")
• 1/2" Female x 3/8" Male Adaptor

2 Spark Plug Sockets
• 16mm (5/8) x 3/8" Square Drive
• 21mm (13/16) x 1/2" Square Drive

EVA Size - 570mm x 460mm x30mm

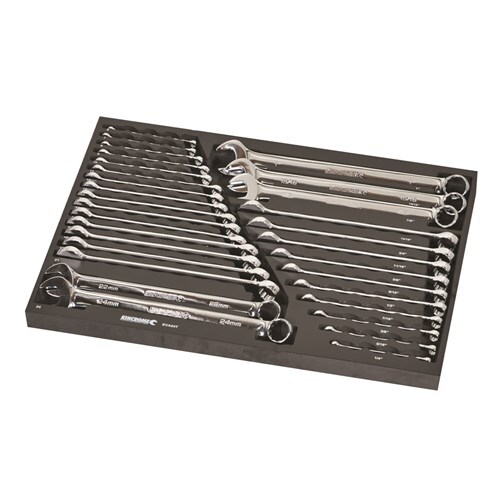

EVA64T - 30 Piece Combination Spanner

• 17 Metric Combination Spanners
6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

• 13 Imperial Combination Spanners
1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16",7/8", 15/16", 1"

EVA Size - 540mm x 395mm x 30mm

• Combination Pliers 200mm (8")
• Diagonal Cutting Pliers 200mm (8")
• Long Nose Pliers 200mm (8")
• Multigrip Pliers 250mm (10")
• Locking Pliers 250mm (10")
• Adjustable Wrench 250mm (10")

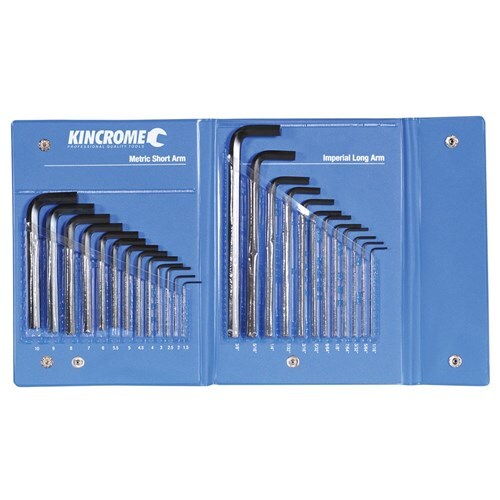

• Hex Key Wrench Set Imperial & Metric 25 Piece
Metric Sizes: 1.5, 2.0, 2.5, 3.0, 4.0, 4.5, 5.0, 5.5, 6.0, 7.0, 8.0, 9.0, 10.0mm
Imperial Sizes: 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8"

• 8 Piece TORQUEMASTER® Screwdriver Set
4 Screwdrivers - Blade: 3mm x 75mm, 5mm x 100mm, 6mm x 100mm, 8mm x 150mm
4 Screwdrivers - Phillips: No.0 x 75mm, No.1 x 75mm, No.2 x 100mm, No.2 x 38mm

• TORQUEMASTER® Bit Driver 1/4" Hex Drive
• Security Bit & Holder Set 33 Piece 1/4" Hex Drive

• Tamperproof TORX® Set 8 Piece 1/4" Square Drive
7 Piece TORX® Bits: T10, T15, T20, T25, T27, T30, T40
1 Piece 1/4" Hex Drive L-handle

• Mini Hook & Pick Set 4 Piece
AWL: 129mm
Pin Remover: 115mm
L hook: 115mm
V hook: 125mm

• Ball Pein Hammer Hickory Shaft 16oz (454gm)

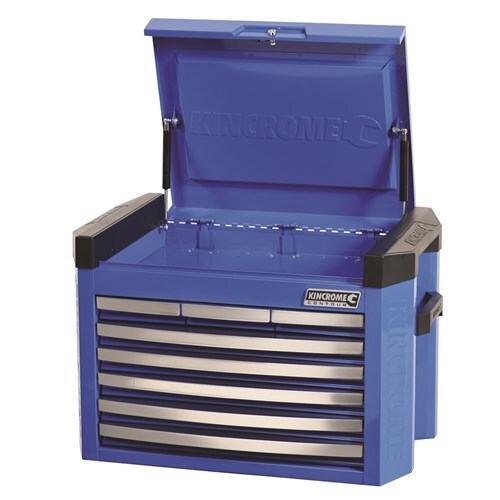

• 8 Drawer Tool Chest
Measurements: 745mm x 475mm x 485mm

Load Capacity: 30kg (per drawer)
Weight: 41kg
Internal Drawer measurements:
• Small - 160 x 395 x 40mm
• Large - 540 x 395 x 40mm
• Top Area - 574 x 460 x 110mm
