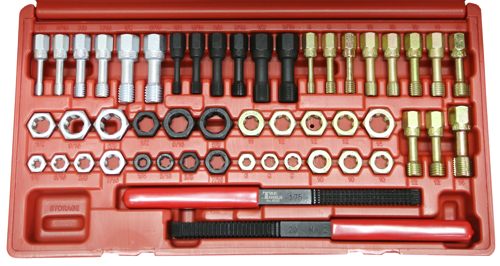

53 Piece UNF, UNC & Metric Re-threader Kit T&E Tools 8020

53 Piece UNF, UNC & Metric Re-threader Kit T&E Tools

• Set Contains:

  Seven UNC, seven UNF and eleven Metric re-threader dies, six UNC, six UNF and eleven Metric re-threader taps, one UNF and UNC thread file and one metric thread file.

  Re-threader Die Sizes:

• 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8" UNC Dies.
• 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8" UNF Dies.
• 6 x 1,8 x 1.25, 8 x 1.5, 10 x 1.0, 10 x 1.25, 10 x 1.5, 11 x 1.5, 12 x 1.25, 12 x 1.5, 12 x 1.75, 14 x 1.5mm Dies.

• Re-threader Tap Sizes:

• 1/4", 5/16", 3/8", 7/16", 1/2", 9/16" UNC Taps.
• 1/4", 5/16", 3/8", 7/16", 1/2", 9/16" UNF Taps.
• 6 x 1, 8 x 1.25, 8 x 1.5, 10 x 1.0, 10x 1.25, 10 x 1.5, 11 x 1.5, 12 x 1.25, 12 x 1.5, 12 x 1.75, 14 x 1.5mm Dies.

• Thread File Sizes:

• #8001 11, 12, 13, 14, 16, 18, 20, 24 tpi
• #8002 9, 10, 12, 16, 20, 27, 28, 32 tpi
• #8008 0.75, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0mm Pitch
