Valve Seat Milling Cutter Set T&E Tools 6257
More infoMake 4 payments of $412.86 over 8 weeks and get it now!
Description

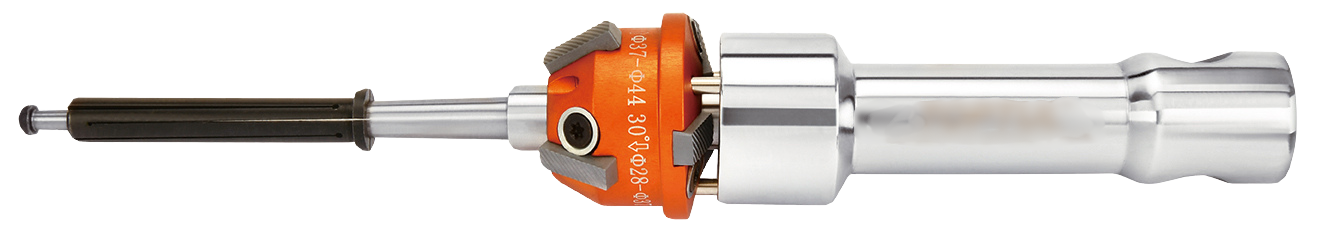

Valve Seat Cutting Kit T&E Tools 6257
- Adjustable Tungsten Carbide Blades Precision machined tungsten carbide blades produce valve seats with accurate seat angle, superior seat surface, and a true flat seal with the seats concentric to the valve guide
Valve Seat Milling Cutter Set 15pcs
Features:

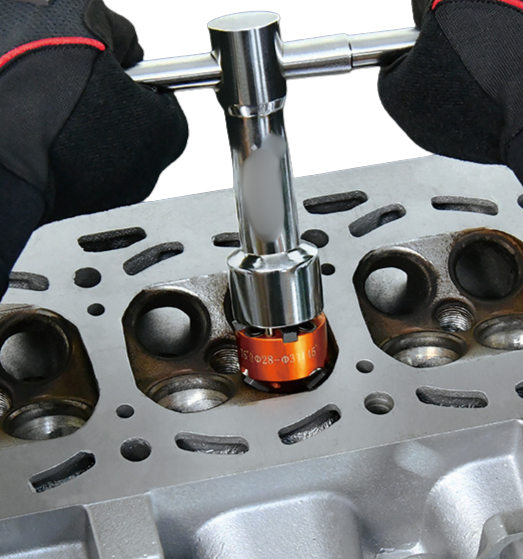

- Special designed tool for re-cutting inlet and exhaust valve seats concentric to the valve guides
- Works on both hardened and normal valve seats
- Precision machined, high hardness and high wear resistance tungsten carbide cutting blade
- Cutter blades can be individually adjusted to optimum adaptation to the valve seat
- Clean cut surface with no chatter marks
- Suitable for seats where valve sizes range from 28 to 65 mm in diameter

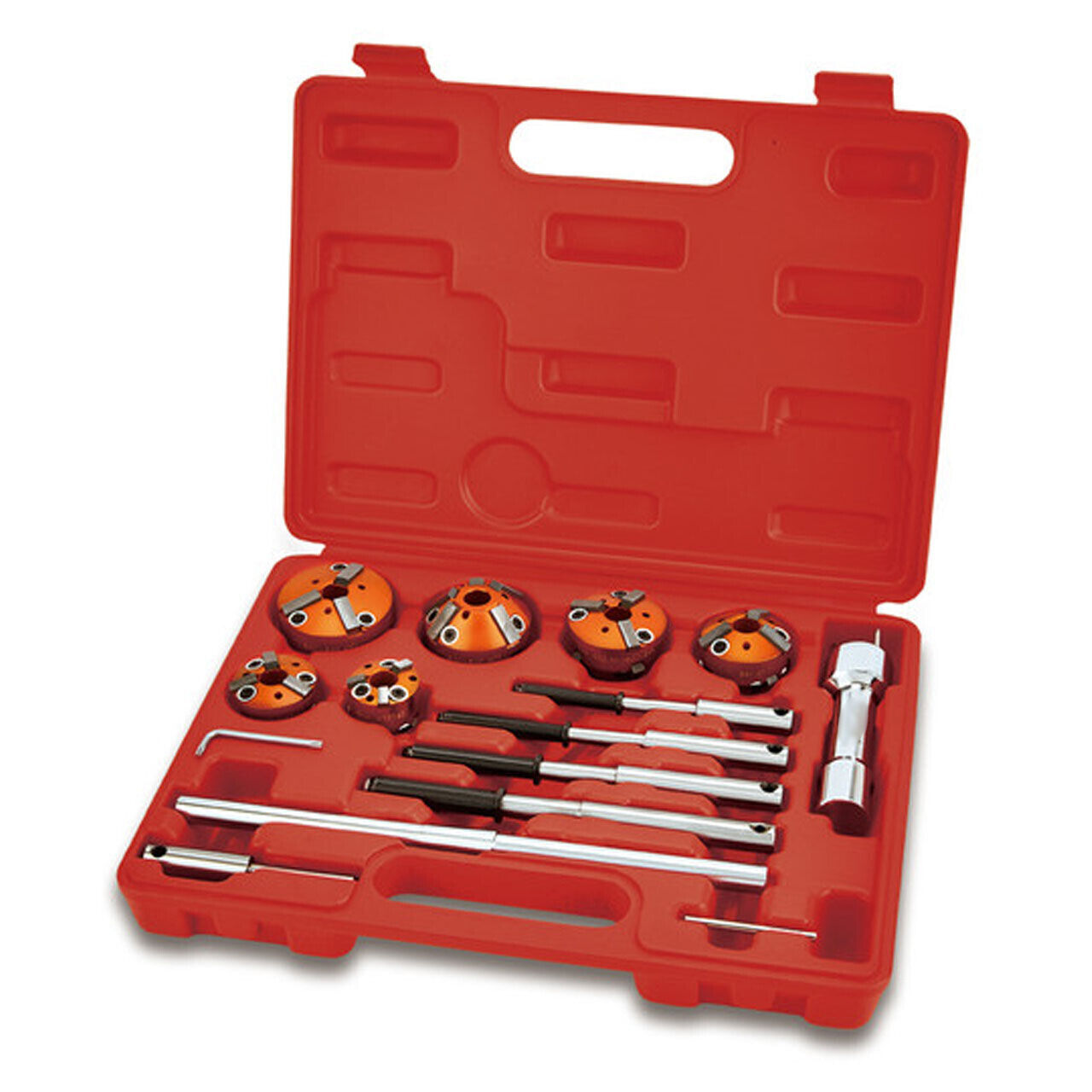

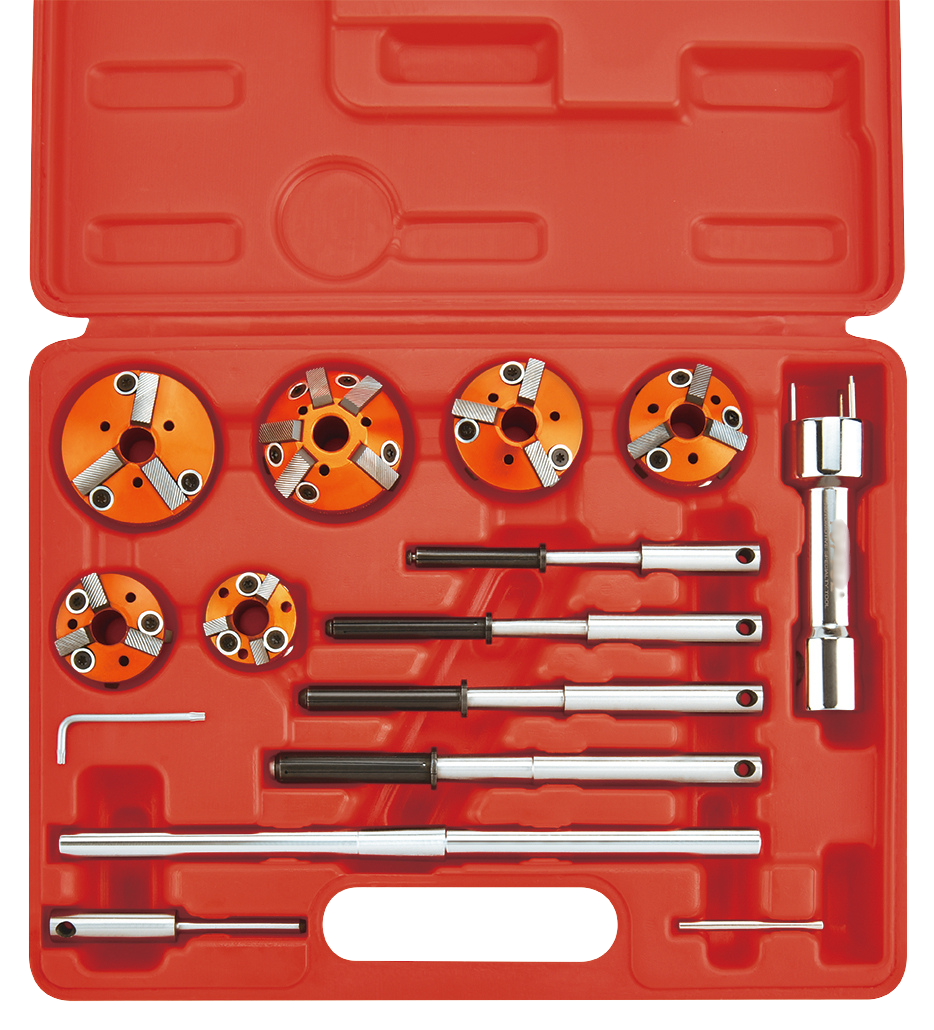

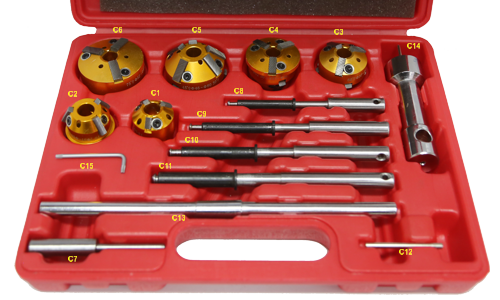

Kit Includes
| 6257-C1 | 28-37mm @ 45° & 75° Valve Seat Cutter for #6257 and #6258 |
| 6257-C2 | 28-37mm @ 30° / 37-44mm @ 75° Valve Seat Cutter for #6257 and #6258 |
| 6257-C3 | 37-46mm @ 45° & 60° Valve Seat Cutter for #6257 and #6258 |
| 6257-C4 | 37-46mm @ 30° / 44-52mm @ 75° Valve Seat Cutter for #6257 |
| 6257-C5 | 46-60mm @ 30° & 45° Valve Seat Cutter for #6257 |
| 6257-C6 | 52-65mm @ 60° & 75° Valve Seat Cutter for #6257 |

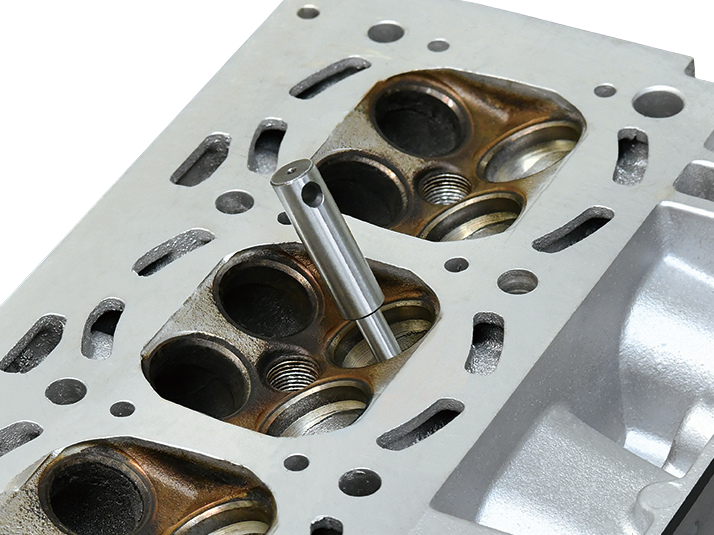

| 6257-C7 | 5.5mm Dia. Solid Pilot Pin Guide for #6257 and #6258 |
| 6257-C8 | 6.8-8.5mm Expandable Pilot Pin Guide for #6257 and #6258 |
| 6257-C9 | 7.8-9.8mm Expandable Pilot Pin Guide for #6257 and #6258 |
| 6257-C10 | 8.9-10.9mm Expandable Pilot Pin Guide for #6257 |
| 6257-C11 | 10.9-12.7mm Expandable Pilot Pin Guide for #6257 |
| 6257-C12 | Small 50mm Long Tommy Bar for #6257 and #6258 |
| 6257-C13 | Large 240mm Long Tommy Bar for #6257 and #6258 |
| 6257-C14 | 3 Pin Cutter Driver Wrench for #6257 and #6258 |
| 6257-C15 | T10 Torx-r Key for #6257 and #6258 |
Fitment
| Make | Model | Year | Fuel Type | Chassis | Lyt |
|---|
Specifications
| SKU | TE-6257 |
| Brand | T&E Tools |
| Barcode # | 9322159962574 |
